Sodick TS guide set - Sodick K1C guide set (Diam 0.10mm to 3.0mm)


 Sodick K1C guide set,Sodick TS guide set, 3561172, 3561173, 3561175, 3561179, 3561186  Sodick TS guide set 3561174,sodick K1C guide set 3561175, Sodick pipe guide,Sodick collet

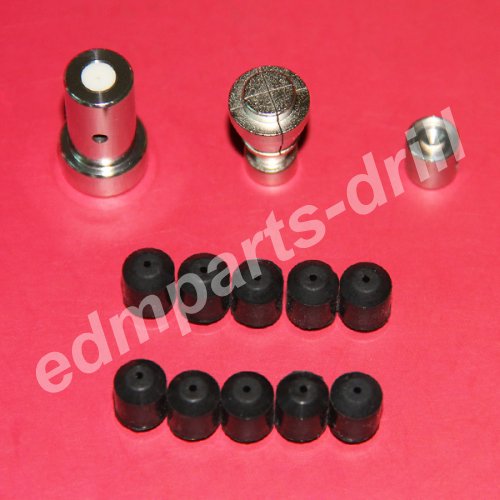

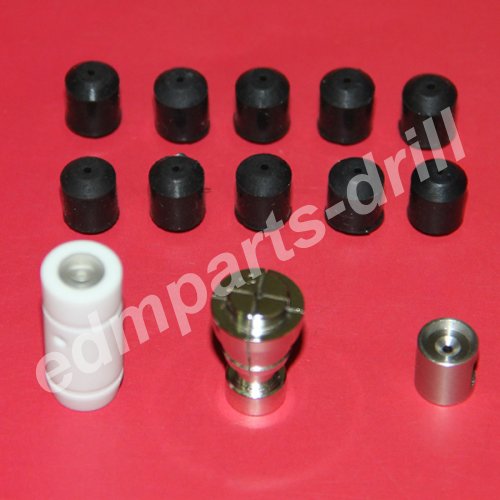

1 K1C guide set / TS guide set including:

1 pc TS guide + 1 pc collet + 1 pc pipe guide + 10 pc rubber seal


Left one: Sodick TS guide set (Guide for Stainless + ceramic type)

Right one: Sodick K1C guide set (Guide for Ceramic + Sapphire type)

Size: 0.10-0.25mm and 0.30-3.0mm are all avaialble



The sizes information together with original code as below are in stock:

0.30  0.32 3561666 3561172
0.40  0.42 3561667 3561883
0.50  0.52 3561668 3561173
0.60  0.62 3561669 3561974
0.70  0.72 3561670 3561971
0.80  0.82 3561671 3561174
0.90  0.92 3561672 3561421
1.00  1.02 3561673 3561175
1.10  1.12 3561674 3561855
1.20  1.22 3561675 3561176
1.30  1.32 3561676 3561975
1.40  1.42 3561677 3561976
1.50  1.52 3561678 3561219
1.60  1.62 3561679 3561177
1.70  1.72 3561680 3561977
1.80  1.82 3561681 3561178
1.90  1.92 3561682 3561856
2.00  2.02 3561683 3561179
2.10  2.12 3561684 3561978
2.20  2.22 3561685 3561979
2.30  2.32 3561686 3561980
2.40  2.42 3561687 3561981
2.50  2.52 3561688 3561982
2.60  2.62 3561689 3561983
2.70  2.72 3561690 3561984
2.80  2.82 3561691 3561985
2.90  2.92 3561692 3561422
3.00  3.02 3561693 3561986
