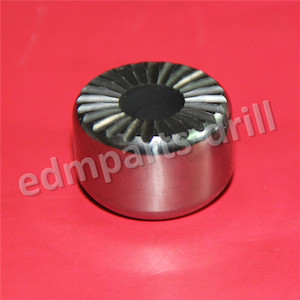

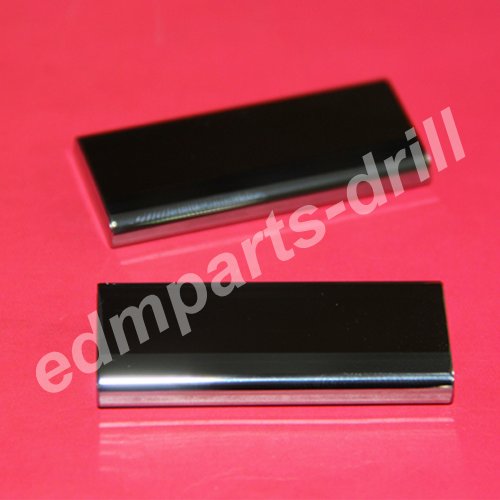

Mitsubishi edm power feed contact
X088D493H01,X055C118H02,056C432H01,X056C075H04,X054D345H02,X054D129H04,X054D125H03
X089D256H01 X088D493H01 X055C118H02 M009 Mitsubishi EDM power feed contact
| M009 | 24.5x20 | Power Feed Contact | Upper& Lower | DWC-HA,SA,SB,SZ, SX, CX, FX, QA,RA,FA | AF2,AF3, AT |
X056C075H04 (X056C075H01) |
| M009N | 24.5x20 | Power Feed Contact | Upper& Lower | DWC-HA,SA,SB,SZ, SX, CX, FX, QA,RA,FA | AF2,AF3, AT (Non polish) |
X056C432H01 (X056C075H06) |
| M009V | 24.5x20 | Power Feed Contact | Upper& Lower | DWC-FA-V | AT | X055C118H02 |
| M009A | ID=10+0.15-0.20mm | Plastic pin for M009 | Upper& Lower | DWC-N. F. G. H. HA. C | AF2,AF3, AT | X059D448G52 |
| M010 | 11x8x21L | Power Feeder | Upper& Lower | DWC-HA,SA,SB,SZ, SX, CX, FX, QA,RA,FA | AF2,AF3,AT,AT2 | X054D990H01 |
| M011 |
38x18 T=5 |
Power Feed Contact | Upper& Lower | BA,NA | AT |
X088D493H02 (X088D439H01) |
| M012 |
41.2x18 T=5.2 |
Power Feed Contact | Upper& Lower | MV | Intelligent AT | X089D256H01 |
|
|
|
