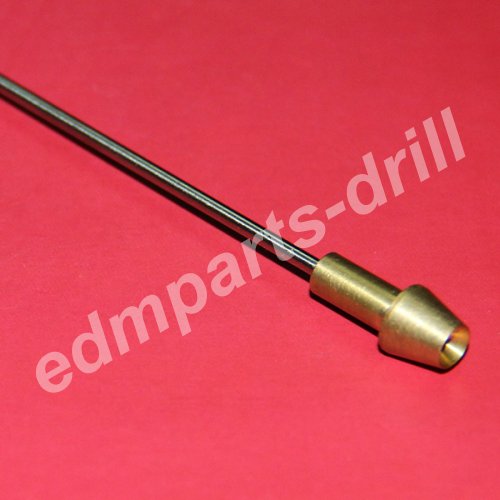

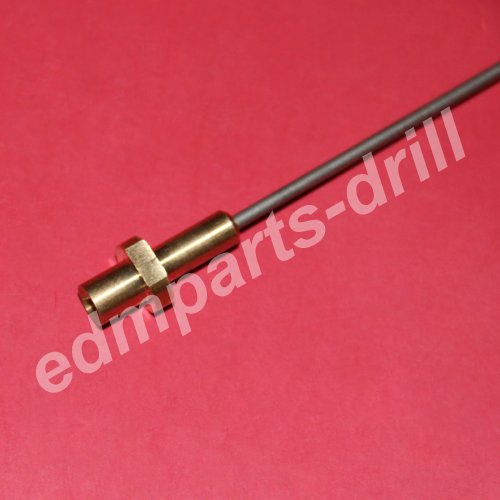

Sodick AWT pipe guide 436296A,3085966,3085967,436849C,436850C


3085966 , 3085967, 436850C, 436849C Sodick AWT pipe guide  3080374, 3080375, 3083256 , 3082452 , 436309B Sodick AWT pipe guide



Sodick AWT pipe guide, AWT pipe guide for Sodick EDM driling

TYPE 85 AWT
Product Name Specification Ref# Order No.
AWT PIPE 2.0(0.5) 204185 3083256
AWT PIPE 2.0(0.7) 200428 3080374
AWT PIPE 2.0(1.0) STANDARD 200429 3080375
AWT BELT SPRING 200603 3080696
AWT CUTTER 204678 3084628
AWT SLIDE BELT 200602 3080711
AWT SLIDE BELT 204248 3081706
AWT SLIDE BELT 205335 3083340
WAVE WASHER 204581 3081414
TYPE 97 AWT(AQ SERIES)
Product Name Specification Ref# Order No.
AWT PIPE 2.0(1.0) STANDARD 205149 3085966
AWT PIPE 2.0(0.7) 205150 3085967
AWT PIPE 2.0(0.5) 205188 3086929
AWT PIPE 2.1-1.0-0.3 205223 3086933
AWT CUTTER 204678 3084628
WAVE WASHER 204581 3081414
TYPE 90 AWT
Product Name Specification Ref# Order No.
AWT PIPE 2.0(1.0) 204013 3082452
AWT CUTTER 204678 3084628
WAVE WASHER 204581 3081414
AWT SLIDE BELT 204163 3082451
AWT BELT SPRING 200603 3080696
OTHER TYPE AWT
Product Name Specification Ref# Order No.
AWT PIPE 2.0(0.7) 205852 436850C
AWT PIPE 2.0(0.7) 206118 436309B
AWT PIPE 2.0(1.0) 205851 436849C
AWT PIPE 2.0(1.4) 205850 436937C
AWT PIPE 2.0(1.4) 206119 436296A
AWT PIPE 2.0-0.7-0.2 205873 3088447
AWT PIPE 2.0-1.0-0.3 204246 3083123
AWT PIPE 3.0-2.0 206138 3110014
WIRE GUIDE (SAPPHIRE) D0.40 204691 3084617
WIRE GUIDE (SAPPHIRE) D0.60 204702 3085043
AWT EL PLATE LOW 205881 C12420B
AWT EL ROLLER LOW-16 205879 A12961C
AWT EL ROLLER MID 205882 A12947C
AWT EL ROLLER LOW 17 205880 A12961D
