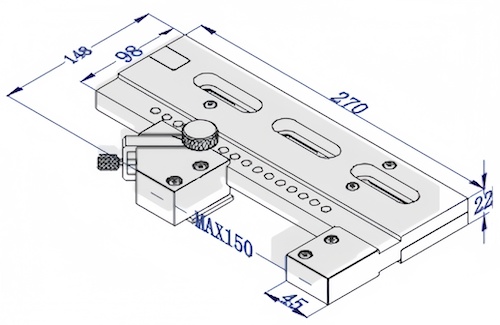

VISE-XYZ150 Wire EDM clamping vise for WEDM fixture board adjustable
  • Detail



VISE-XYZ150 Wire EDM clamping vise for WEDM fixture board adjustable

XYZ 3 axis adjustable range: 0-150mm



Features :

  • Precision wire cutting vise is used in conjunction with the high precision accessory;
  • Property of stainless steel, treated by casting,vacuum heating and deep cryogenic forming and finished;grinding molding,finally the vise with good stability,good rigid without deformation;

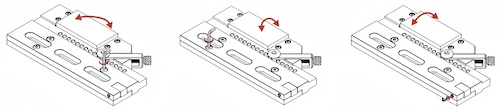

  • The alignment can be done on horizontal and parallel both sides along X,Y,Z threes axis to reduce workpiece positioning correction time, result in the in creasing of machine working efficiency;
  • Jaw angle is using a special cross-eyes design with stingily clamping,not upturned, high water resistance against high flushing pressure;
  • Recommened maximum load capacity of 10kg

Specifications:

  • Parallelism within:100mm/3um
  • Squareness within:100mm/5um
  • Material:SUS420 and SUS440
  • HARDNESS:HRC50-55 degree
  • Clip to hold scope:0-150mm
