Mitsubishi EDM bellows MV series​

S684D859P67, S684D886P97 S684D851P26, S684D851P56

Various types of Bellows for Mitsubishi EDM machines

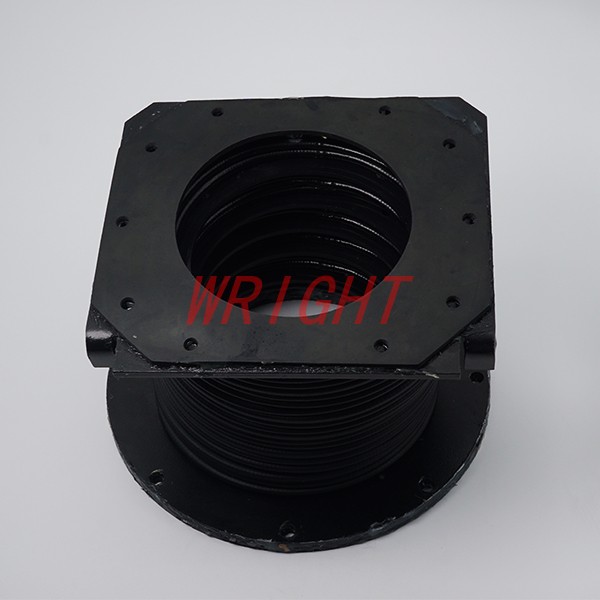

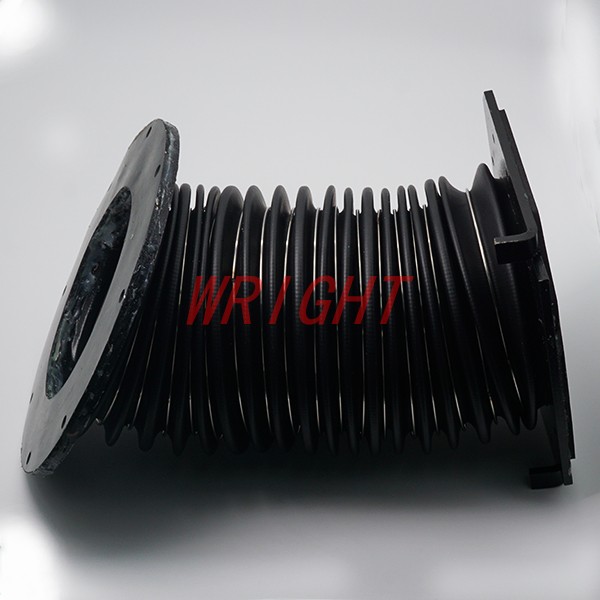

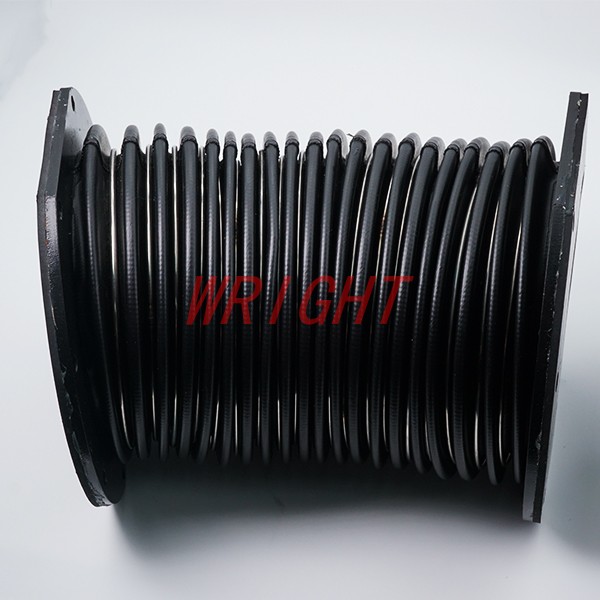

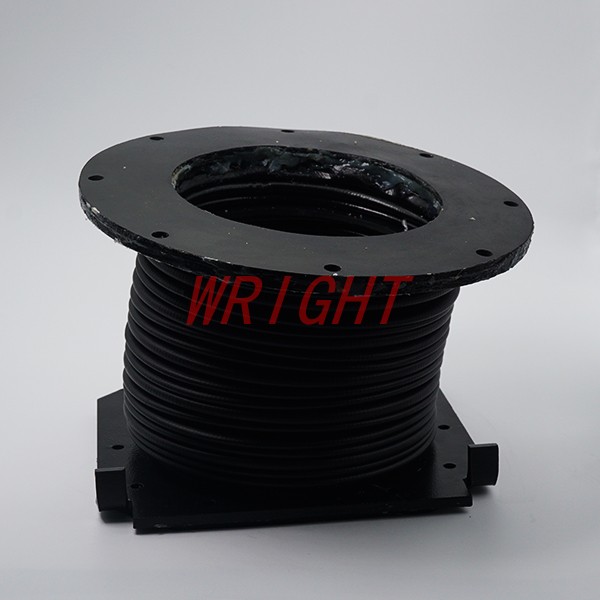

S684D859P67 DT63000 Mitsubishi EDM Bellows MV series​
Application:  Mitsubishi EDM machines MV series

S684D886P97 Mitsubishi EDM Bellows​ MV1200

Original code: S684D886P97,​S684D875P53, DGH2100, DGH21008

Application: Mitsubishi MV1200 series

​

Various types of Mitsubishi EDM bellows

S684D851P71
S684D851P26
S684D851P56
S684D886P97
S684D859P67​​

​

Mitsubishi EDM Bellows: Protection for Precision

In wire EDM machines, components are constantly exposed to dielectric fluid, fine debris, and continuous motion.

The Mitsubishi EDM bellows plays a crucial role in protecting sensitive machine parts from these harsh conditions.

What Is an EDM Bellows?

A bellows is a flexible protective cover, typically made from coated fabric, rubber, or engineered polymers.

In Mitsubishi EDM machines, it shields guideways, screws, and other moving components from contamination and wear.

Key Functions

Protection: Prevents debris and fluid from damaging internal parts
Durability: Extends the life of precision components
Smooth Operation: Maintains consistent machine movement
Sealing: Helps keep critical areas clean and sealed

Benefits

Reduces maintenance costs
Improves machine reliability
Supports long-term accuracy​
