Sodick diamond wire guide 87-3 color - Original China supply

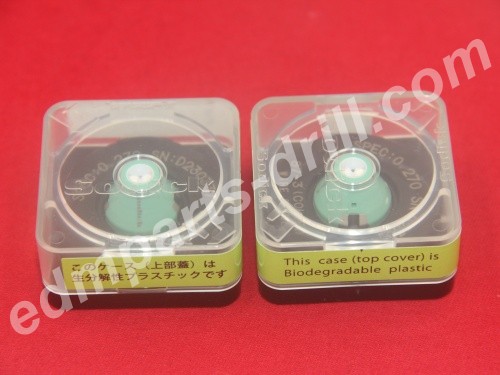

0206109 J03647A 3081423 lower diamond guide colored Ø 0.255 mm

0206110 J03648A 3080990 lower diamond guide colored Ø 0.260 mm

0206111 J03649A 0200724 3081017 lower diamond guide colored Ø 0.270 mm

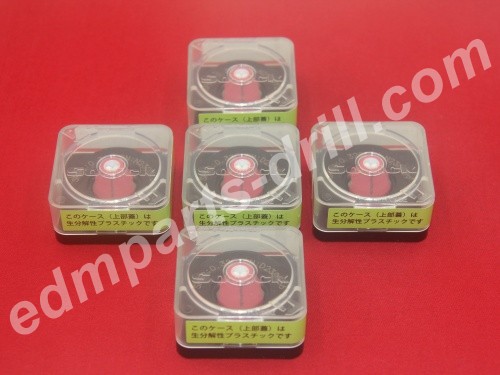

0206112 0206112jp J03650A lower diamond guide colored Ø 0.305 mm

0206113 0206113jp J03651A lower diamond guide colored Ø 0.310 mm ​

0206114 0206114jp J03652A lower diamond guide colored Ø 0.320 mm

0206160 118908 3110291​ wire guide Ø 0.255 mm

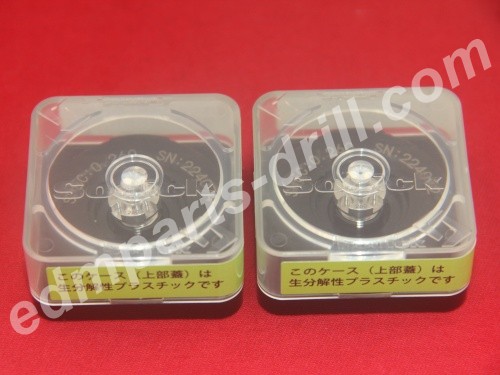

0206161 0206261 11813WA 3110547 wire guide Ø 0.260 mm​

0206163 118727 3110067​ wire guide Ø 0.310 mm​

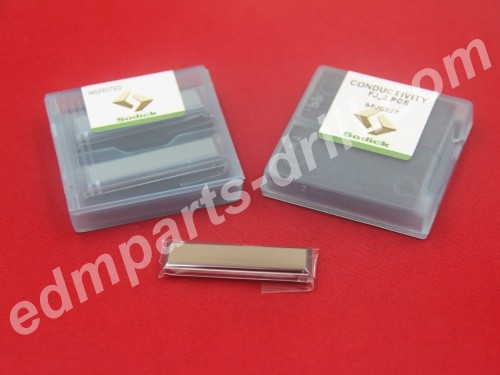

0291051 11802JA 118908 3110330 3220338EU J01118A MW501390A Sodick EDM current supply

Selection and Maintenance Recommendations

Aperture Matching:

The guide wheel bore diameter is typically 0.10mm to 0.03mm larger than the wire diameter. For example, when using 0.25mm copper wire, a 0.255mm guide wheel is usually selected.

Regular Cleaning:

Due to the metal shavings and sludge generated during processing, the guide wheel bore should be cleaned regularly with a special cleaning agent to prevent wire misalignment or breakage.

Proactive Replacement:

When an abnormal decrease in processing speed, deterioration in surface roughness, or increase in the frequency of wire breakage is observed, the inner bore of the guide wheel should be checked for wear or gaps, and it should be replaced promptly.
​
