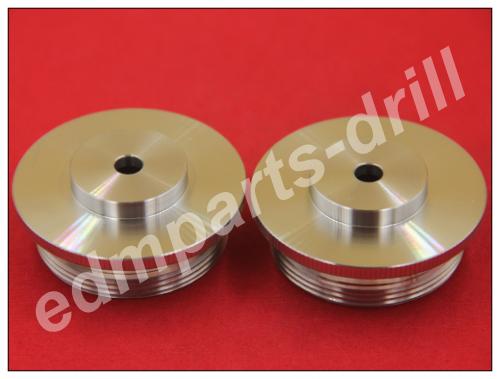

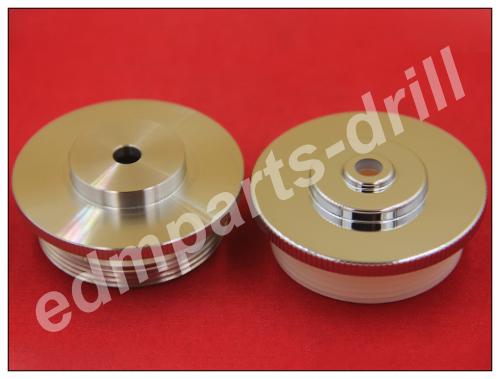

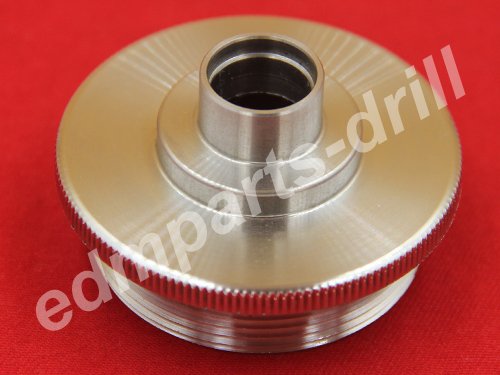

20EC130A401 18EC130B401 Makino laminar nozzle high-quality

Material: Stainless steel

Application: Makino wire EDM machine

Quality type: high-quality for Makino original alternative

The following codes for Makino EDM  laminar nozzles are all available

6EC80A418     Φ50xΦ12x20H
6EC130A402    Φ50xΦ12x28H
4EC130A701=1 Φ22xΦ8x10.5
4EC80A708=1  Φ22xΦ8x2.5H
15EC80C401    Φ50xΦ5x21.5H
15EC130C401=1 Φ50xΦ7x21.5H
6EC80A419     Φ50xΦ40x4H
20EC130A401 Φ50xΦ6x22H
20EC130A401 Φ50xΦ6x22H
18EC130B401 Φ50xΦ12x25H

 20EC130A401 Stainless

 18EC130B401 Stainless​
