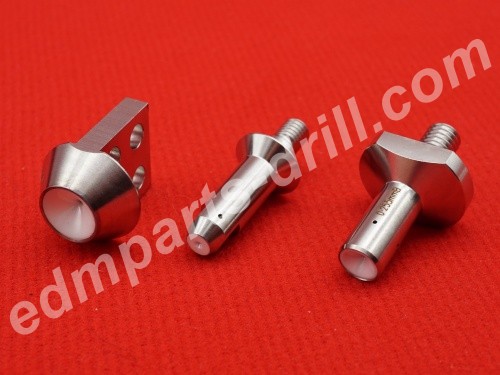

Makino EDM diamond guides high-quality

4 types of diamond wire guides for Makino wire EDM machine

​-----------------------------------------------------------
​
Makino EDM Wire guide upper

Size: OD12 x 30 mm​L​

Application: Makino EDM machine

SP43.SP64 DUO43,64 W32FB, W53FB​
23EC085A205 ID=0.075mm
23EC085A207 ID=0.105mm
23EC085A222 ID=0.155mm
23EC085A209 ID=0.205mm
23EC085A212 ID=0.255mm
23EC085A215 ID=0.305mm

Makino EDM Wire guide lower

Size: OD17 x 21 mmH

Application: Makino EDM machine

SP43.SP64 DUO43,64 W32FB, W53FB​

20EC090A216 ID=0.075mm
20EC090A213 ID=0.105mm
20EC090A201 ID=0.155mm
20EC090A203 ID=0.205mm
20EC090A207 ID=0.255mm
20EC090A211 ID=0.305mm
​-----------------------------------------------------------

Makino EDM diamond wire guide upper

Size: OD12 x 30 mm​L​

Application: Makino Wire EDM machine, U6 H.E.A.T​

33EC085A104 ID=0.105mm
33EC085A105 ID=0.155mm
33EC085A106 ID=0.205mm
33EC085A107 ID=0.255mm
33EC085A108 ID=0.305mm

Makino EDM diamond wire guide lower

Size: OD18/7 x L30.5 mm

Application: Makino Wire EDM machine, U6 H.E.A.T​

33EC095A104 ID=0.105mm
33EC095A105 ID=0.155mm
33EC095A106 ID=0.205mm
33EC095A107 ID=0.255mm
33EC095A108 ID=0.305mm
