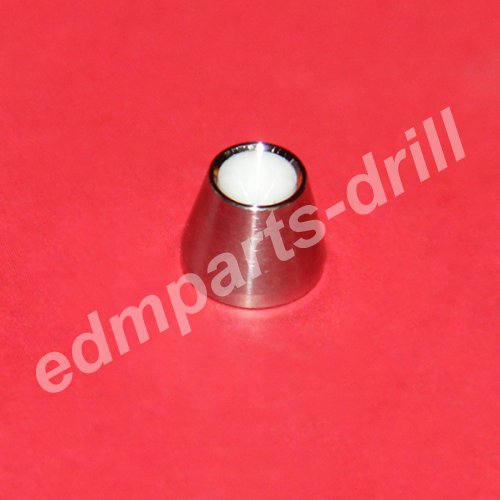

S102 3080237, 3080240, 3080241, 3080245, 3080249 Sodick diamond guide


3080248, 3080247 , 30802479, 3080245 Sodick diamond guide



Electrode Wire Guide Diameter DIAMOND
Diameter
(φmm) (φmm) (φin) Ref# Order No.
0.1 0.105  0.004  200134 3080236
0.110  0.004  200135 3080237
0.120  0.005  200136 3080238
0.15 0.155  0.006  200129 3080512
0.160  0.006  200137 3080240
0.170  0.007  200138 3080241
0.2 0.205  0.008  200139 3080243
0.210  0.008  200140 3080244
0.220  0.009  200141 3080245
0.25 0.255  0.010  200142 3080247
0.260  0.010  200143 3080248
0.270  0.011  200144 3080249
0.3 0.305  0.012  204302 3087704
0.310  0.012  200145 3080250
0.320  0.013  200146 3080251
