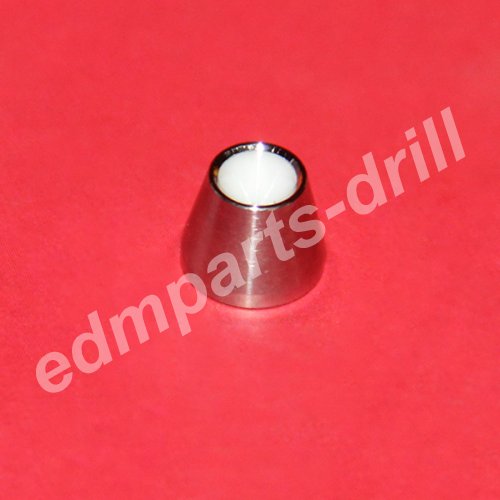

S102 Sodick diamond guide
3080237, 3080248, 3080249, 3080245, 3080241,3080240, 3080250 S102 Sodick diamond guide
Super quality from China factory
Type: Stainless house + ceramic insert + diamond inside
Size: 0.05-0.32mm
| Electrode | Wire Guide Diameter | Ref# | Order No. | |
| (φmm) | (φmm) | (φin) | ||
| 0.10 | 0.105 | 0.0041 | 0200134 | 3080236 |
| 0.11 | 0.0043 | 0200135 | 3080237 | |
| 0.12 | 0.0047 | 0200136 | 3080238 | |
| 0.15 | 0.155 | 0.0061 | 0200129 | 3080512 |
| 0.16 | 0.0063 | 0200137 | 3080240 | |
| 0.17 | 0.0067 | 0200138 | 3080241 | |
| 0.20 | 0.205 | 0.0081 | 0200139 | 3080243 |
| 0.21 | 0.0083 | 0200140 | 3080244 | |
| 0.22 | 0.0087 | 0200141 | 3080245 | |
| 0.25 | 0.255 | 0.01 | 0200142 | 3080247 |
| 0.26 | 0.0102 | 0200143 | 3080248 | |
| 0.27 | 0.0106 | 0200144 | 3080249 | |
| 0.30 | 0.305 | 0.012 | 0204302 | 3087704 |
| 0.31 | 0.0122 | 0200145 | 3080250 | |
| 0.32 | 0.0126 | 0200146 | 3080251 | |
|
|
|
