​Taper Diamond Guide for Mitsubishi MV/MX EDM

For high-precision large-taper cutting on Mitsubishi MV/MX wire EDMs, a specialized diamond guide is essential. Standard guides struggle with wire stability at steep angles, which can compromise accuracy and surface finish.

Precise Fit: Engineered specifically for compatibility with Mitsubishi MV/MX taper systems.

Using the correct large-taper guide minimizes wire deflection, improves machining stability, and helps maintain part quality in complex applications. Always verify model compatibility for optimal results.

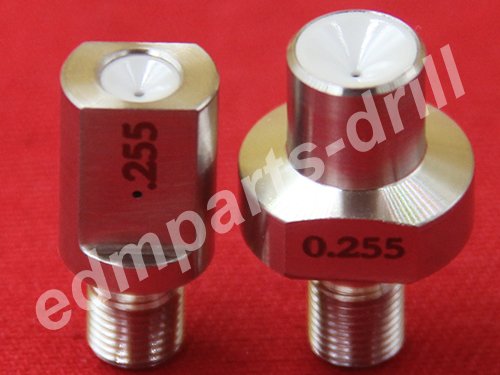

MV/MX EDM ​Diamond dia guide upper For tapper​​ M115T

X052B664G63 ID 0.20mm
X052B664G62 ID 0.25mm

MV/MX EDM ​​Diamond dia guide lower​ For tapper​ M116T​
X052B665G63 ID 0.20mm
X052B665G62 ID 0.25mm

Tapper nozzles are also required to assist the tapper Diamond wire guide.

X085C257H02 ID 7mm Upper Flushing nozzle For tapper
X085C131H12 ID 7mm Lower Flushing nozzle For tapper

X085C576H01 ID 20mm Upper Flushing nozzle For tapper
X085C575H01 ID 16mm Lower Flushing nozzle For tapper
​
